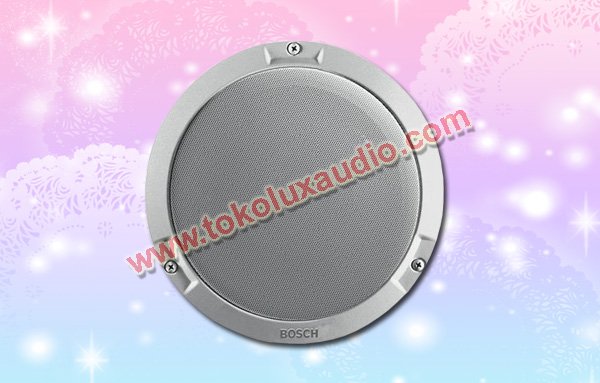

Bosch LHM 0626, Metal Grile Ceiling Speaker

• Suitable for speech and music reproduction
• Flush-mounting in ceiling cavity
• Easy to install
• Simple power setting
• Unobtrusive white metal grille
• Unobtrusive in virtually all interiors
• Complies with international installation and safety regulations.

The LHM 0626/00 is an economic flush‑mounting ceiling loudspeaker for general-purpose applications. It is a full‑range loudspeaker for speech and music reproduction in shops, department stores, schools, offices, sports halls, hotels and restaurants.

The LHM 0626/00 has a single‑piece, 6 W, dual‑cone loudspeaker. A 100 V matching transformer is mounted on the back of the frame. The circular metal grille is an integrated part of the front, and is finished in an unobtrusive white color (RAL 9010).

Certifications and approvals
All Bosch loudspeakers are designed to withstand operating at their rated power for 100 hours in accordance with IEC 268-5 Power Handling Capacity (PHC) standards. Bosch has also developed the Simulated Acoustical Feedback Exposure (SAFE) test to demonstrate that they can withstand two times their rated power for short durations. This ensures extra reliability under extreme conditions, leading to higher customer satisfaction, longer operating life, and much less chance of failure or performance deterioration.
Safety : Acc. to EN 60065

Technical specifications

Electrical*

• Maximum power : 9 W
• Rated power : 6 W (6 / 3 / 1.5 / 0.75 W)
• Sound pressure level at 6 W / 1 W (1 kHz, 1 m) : 99 dB / 91 dB (SPL)
• Sound pressure level at 6 W / 1 W (4 kHz, 1 m) : 104 dB / 96 dB
• Effective frequency range (-10 dB) : 70 Hz to 18 kHz
• Opening angle at 1 kHz / 4 kHz (-6 dB) : 160° / 55°
• Rated voltage : 100 V
• Rated impedance : 1667 Ohm
• Connector : 2‑pole screw terminal

* Technical performance data acc. to IEC 60268‑5

Mechanical

• Diameter : 199 mm (7.8 in)
• Maximum depth : 77 mm (3.03 in)
• Mounting cut-out : 165 + 5 mm (6.5 + 0.20 in)
• Speaker diameter : 152.4 mm (6 in)
• Weight : 900 g (1.98 lb)
• Color : White (RAL 9010)
• Magnet weight : 150 g (5.3 oz)

Environmental

• Operating temperature : -25 to +55 ºC (-13 ºF to +131 ºF)
• Storage temperature : -40 to +70 ºC (-40 ºF to +158 ºF)
• Relative humidity : <95%
