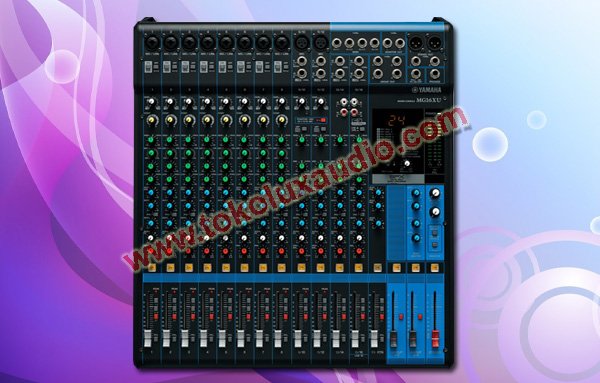

Mixer YAMAHA MG-16XU

Ditambahkan pada : May 12th, 2015
*Harga Hubungi Kami
Stock : Tersedia
Kode Produk : Mixer YAMAHA MG-16XU (USB)
Dilihat : 1,501 kali
Kategori : Produk Yamaha
Bingung Cara Order / Pesan?
Customer Service Toko Lux Audio siap melayani dan membantu Anda.

Mixer YAMAHA MG-16XU

Harga Belum Termasuk PPN & Ongkos Kirim Luar Kota

Kontak Marketing Kami Untuk Dapatkan Harga Terbaik

MIXER YAMAHA MG16XU (USB PORT 2.0 READY)

  • 16-Channel Mixing Console
  • Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
  • 4 GROUP Buses + 1 Stereo Bus
  • 4 AUX (incl. FX)
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • High-grade effects: SPX with 24 programs
  • 24-bit/192kHz 2in/2out USB Audio functions
  • Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
  • Includes Cubase Al DAW software download version
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • Internal universal power supply for world-wide use
  • Rack Mount Kit Included
  • Metal chassis

Spek
Kerangka
Kapabilitas Mixing Prosesor on-board SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
I/O Daya Phantom +48 V
I/O Digital USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Outline
Input Channels Mono[MIC/LINE] 8
Mono/Stereo[MIC/LINE] 2
Stereo[LINE] 2
Output Channels STEREO OUT 2
MONITOR OUT 1
PHONES 1
AUX SEND 4
GROUP OUT 4
Bus Stereo: 1, GROUP: 4, AUX: 4 (incl. FX)
Input Channel Function PAD 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
COMP 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking
EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter 2×12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]

Spesifikasi Umum

  • Total Distorsi Harmoni 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
  • Respon Frekuensi +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
  • Hum & Tingkat Kebisingan Penyetaraan Masukan Kebisikan -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
  • Sisa Kebisingan Keluar -102 dBu (STEREO OUT, STEREO master fader: Min)
  • Crosstalk -78 dB
  • Persyaratan Daya AC 100 – 240 V, 50 / 60 Hz
  • Penggunaan Daya 30 W
  • Dimensi W 444 mm (17.5″) H 130 mm (5.1″) D 500 mm (19.7″)
  • Berat Bersih 6.8 kg (15.0 lbs.)
  • Aksesori Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Rack-mount kit, Optional Accessory: Foot Switch FC5
  • General specifications
  • Others Operating Temperature: 0 to +40˚C
